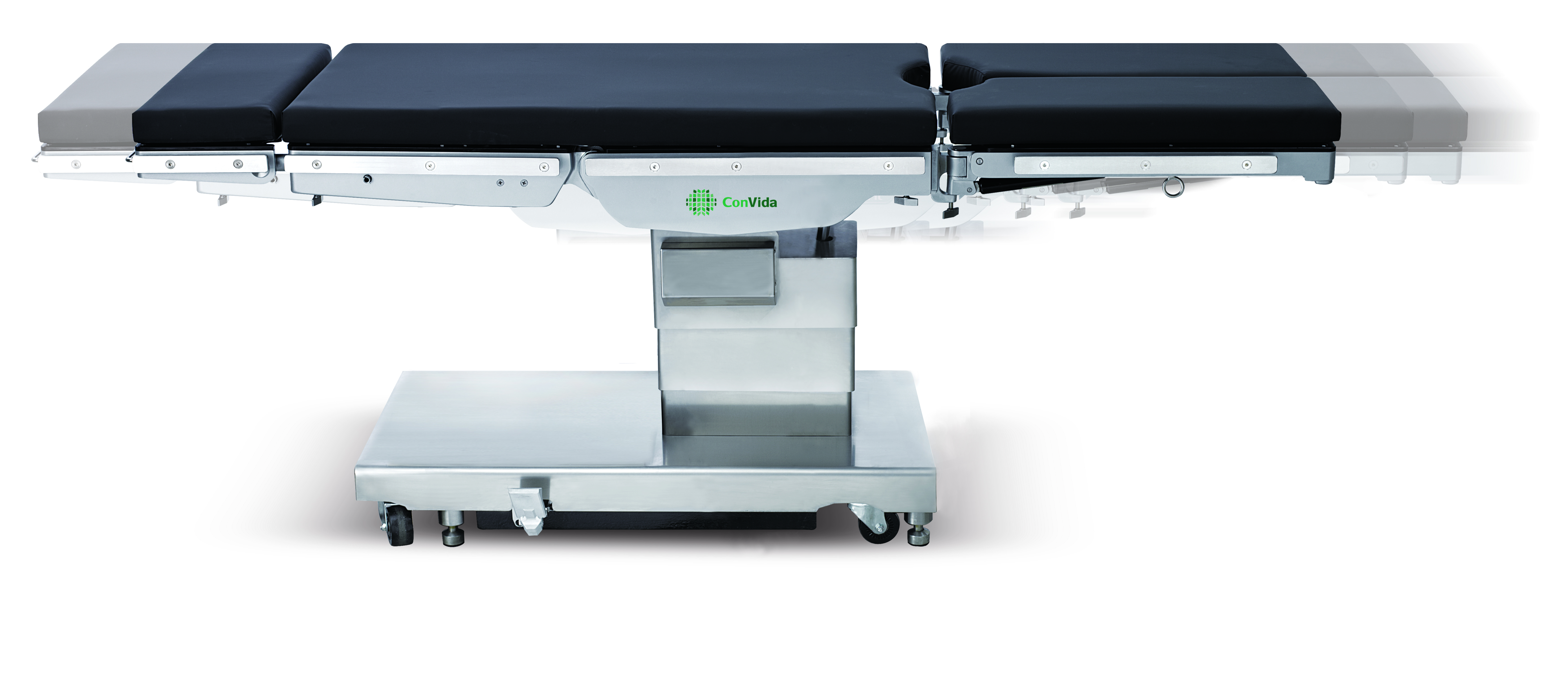

CLASSIC 1752
Positioning Versatility
With flexibility and ease-of-use in mind, the Classic 1752 surgical table is designed to facilitate superior patient positioning.
X-Ray Translucence
– Longitudinal sliding of 13-3/4” inches (350mm) enables the entire anatomy of the patient to be imaged, and allows for 100% C-Arm access without patient reversing.
Table Movement
– Reliable kidney elevator is made of radiolucent material, and is manually operated with very little effort.
– Return-to-level position function can be controlled via one push of the hand control button, eliminating the guess work and time normally involved in returning the patient to a level position.
– Battery powered electro-hydraulic actuation for smooth and quiet operation.
Safety
– Our table has an amazing durability to allow a max. capacity of 1000lbs (454 Kg).
– Self-compensating floor locks adjusted automatically via the table control for uneven floors.
– Battery power means no cord to clutter the surgical area. Fully charged batteries last around one week.
– Emergency pressure relief valve allows the table to be unlocked in an emergency situation.
Multiple Controls
– Primary hand control has a long spiral cord allowing operation from anywhere around the table.
– A standard secondary hand control provides the second source of functional controls when the primary hand control becomes lost or damaged.
– The manual pump can be used when the electric operation is not available.
– Wireless hand control and corded foot control are optionally available from ConVida.
Easy Maintenance
– The table is IPX4 certified equipment, which prevents splashed water and dirt from getting into the base.
– The base cover is split into two sections for easy service accessibility.
